The Making of the Pebble Terrace

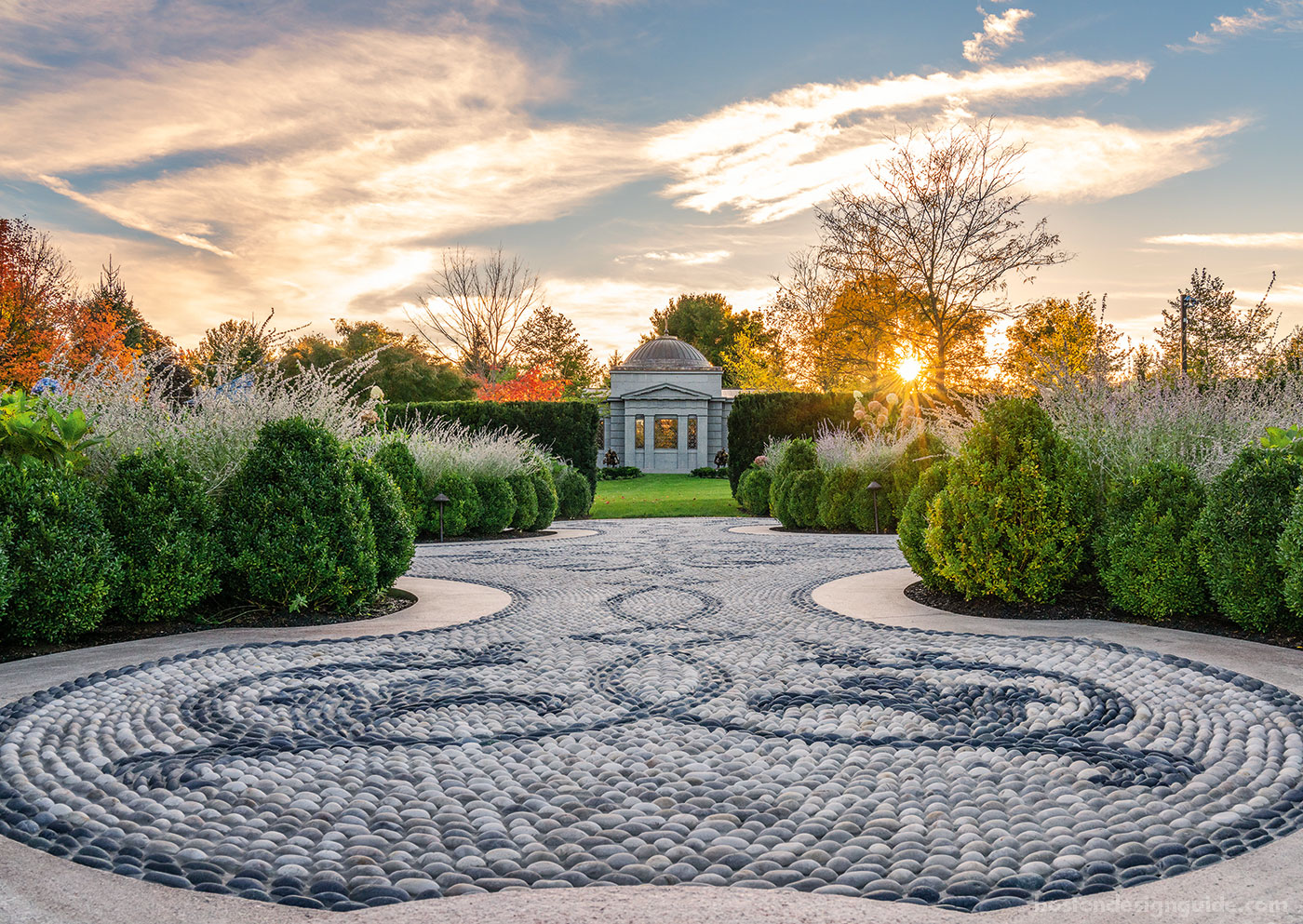

Pebble terrace on Ernie Boch Jr.'s garden pavilion

Interior designer Anthony Catalfano, who has worked with Ernie Boch, Jr. on his home and on the many structures throughout his property, calls the grounds of Boch’s estate, “the most beautiful garden you’ve ever seen. [The Pebble Terrace] is made of black and white stones that make a pattern,” he continues. “It’s crazy beautiful.”

Comprised of contrasting Mexican beach stones, the Pebble Terrace is undoubtedly the jewel of an expansive and picturesque landscape designed as a series of outdoor rooms by landscape architect Brian Frazier of Brian Frazier Design. The singular yet intimate space is directly on axis with Boch’s Garden Pavilion, which was designed by Eric Inman Daum Architect and built by KVC Builders, and fringed with layers of taxus, hydrangea, Russian sage and boxwood.

Pebble terrace on Ernie Boch Jr.'s garden pavilion

Project Manager Chris Johnson of R.P. Marzilli & Company, the landscape contractor that handcrafted the Pebble Terrace, shares that he “has never done anything so intricate or custom on a flat terrace like this—personally or professionally.” He applauds Frazier’s design, and takes us behind the scenes to see what it took to bring the one-of-a-kind terrace to life.

The Process

The first step was to excavate the site, which was critical, says Johnson, as there was no foundation to be found. Norwood Engineering and Walsh Construction, the site contractors, helped to remove the earth, which allowed the pebble terrace and stair to be built on a central axis. “The terrace was excavated to a depth of five or six feet,” says Johnson; a 12-inch concrete slab was poured six feet deep to bring it up to 5 feet.”

Prior to foundations for the garden pavilion and pebble terrace, a series of drainage and sewerage line for the garden pavilion were run directly below the pebble terrace. Excavation for this work was significant. The team had serious concerns about settling. Walsh completed this work and compacted the backfill in lifts to ensure no settling would occur. This work went through the "lower lawn" and R.P. Marzilli & Co. sodded it Thanksgiving eve.

How Ernie Boch Jr.'s Pebble Terrace was made

After four-foot vertical forms were installed, the shape of the pebble terrace started to come together. The stem walls were reinforced, infilled and crowned by a topping slab, outfitted with a snow melt system within the concrete, to ensure the terrace won’t accumulate snow.

How Ernie Boch Jr.'s Pebble Terrace was made

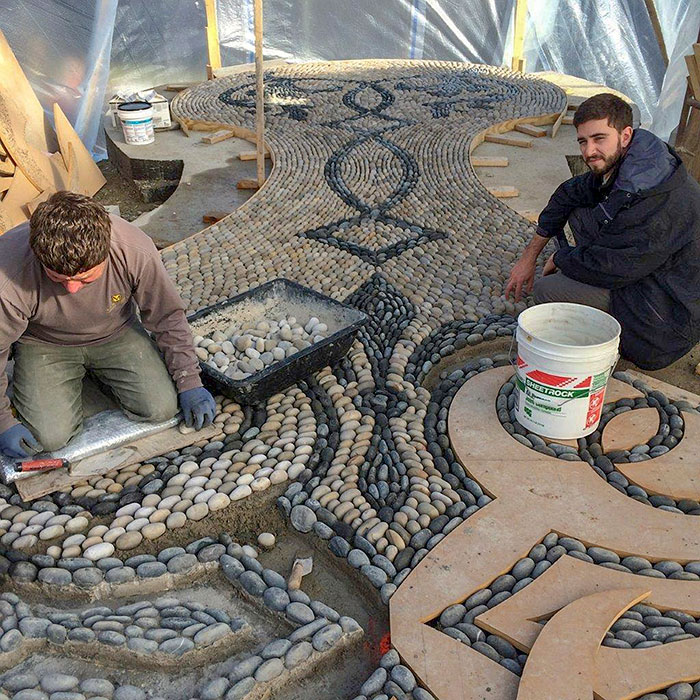

R.P. Marzilli’s team determined that the best way to approach the design was to work outward from an interior starting point, in a ripple effect. South Shore Millwork cut forms from AutoCad templates to allow the craftsmen “to stay on the central axis and keep everything absolutely perfect,” says Johnson. Not only did the terrace have to be centered, the stones needed to radiate following the geometry of the design.

The Mexican beach pebbles themselves also required attention, and arrived in one-ton sacks that needed to be sorted. Each stone was measured for length and width and arranged by color and size. Certain curves required stones of similar widths. “You can see how some of the pebbles are thinner and some are thicker,” says Johnson. “That was all very intentional.”

How Ernie Boch Jr.'s Pebble Terrace was made

A team of 5 to 6 men—a controlled group—was assembled to embed the stones. They worked on their hands and knees for three months during the winter of 2015-2016 (under heated tents) to guide each pebble into place. Johnson applauds the crew’s perseverance and level of craftsmanship. “They took their time, understanding and valuing the end goal,” he says. “It’s physically and mentally exhausting, and they didn't accept anything other than perfection.”

For the grouting, the team went though multiple mockups using different grouts and mortars until they landed on the product they wanted. The depth of the mortar on each stone influenced the final look. The “jointing was critical in making the terrace come together,” emphasizes Johnson, and the team went slowly, section by section, for this finishing touch.

The team behind Ernie Boch Jr.'s pebble terrace

Pictured left to right: Project Manager Chris Johnson; Landscape Architect Brian Frazier; President Bob Marzilli; Master Stone Mason and Field Supervisor John Dias; and Ernie Boch, Jr.

At the project’s completion, the team gathered as if for a ribbon cutting as Ernie Boch, Jr. pressed a medallion etched with the date, his name, Brian Frazier Design and R.P. Marzilli & Co. into fresh concrete. R.P. Marzilli & Company was honored that Boch had their name emblazoned, and it was more rewarding still, says Johnson, when Boch shook the hands of everyone on the design team and offered a heartfelt thank-you for their hard work.

Engraved plaque on Ernie Boch Jr.'s Pebble Terrace

Top two photographs by Warren Patterson Photography; all others are courtesy of R.P. Marzilli & Company
